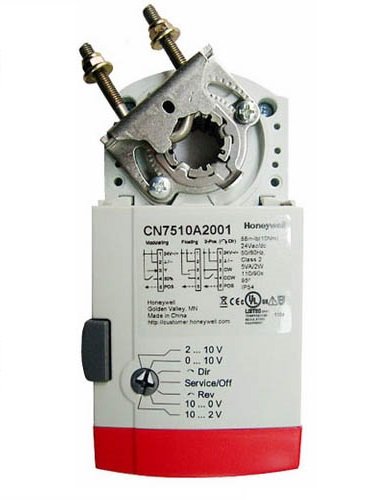

HONEYWELL MODULATING ACTUATOR CN7505/10
This non-spring return direct-coupled damper actuator provides modulating and floating/2-position control for:
• air dampers,
• VAV units,
• air handlers,
• ventilation flaps,
• louvers, and
• reliable control for air damper applications with up to 10 sq ft / 44 lb-in. (5 Nm) and 20 sq ft / 88 lb-in. (10 Nm) (seal- less damper blades; air friction-dependent).
Description
SPECIFICATIONS
Supply voltage 24 Vac/dc -15%/+20%, 50/60 HzNominal voltage 24 Vac/dc, 50/60 HzAll values stated hereinafter apply to operation undernominal voltage conditions.
Power consumption
CN7505 5 VA / 2 WCN7510 5 VA / 2 W
Control signal
Modulating (0)2…10 VdcFloating/2-Position 24 Vac/dc
Ambient limits
Ambient operating limits -5…+140 °F (20…+60 °C)Ambient storage limits -22…+176 °F (-30…+80 °C)Relative humidity 5…95%, non-condensing
Safety
Protection standard IP54Protection class II as per EN 60730-1Overvoltage category II
Lifetime
Full strokes 60000Repositions 1.5 million
Mounting
Round damper shaft 3/8 in…5/8 in.Square damper shaft 1/4 in…1/2 in.; 45° stepsShaft length min. 1-5/8 in.End switches (when included)Rating Class IITriggering points 5° / 85°Torque rating 44 lb-in. (5Nm) / 88 lb-in. (10Nm)Rotation stroke 95° + 3°Dimensions see “Dimensions” on page 8Weight (without cables) 1.0 lbs.Noise rating 35 dB(A) max. at 1 m
BRAND
Honeywell
MOC
PLASTIC
MODEL NUMBER
CN7510A2001
OPERATION
ELECTRIC
