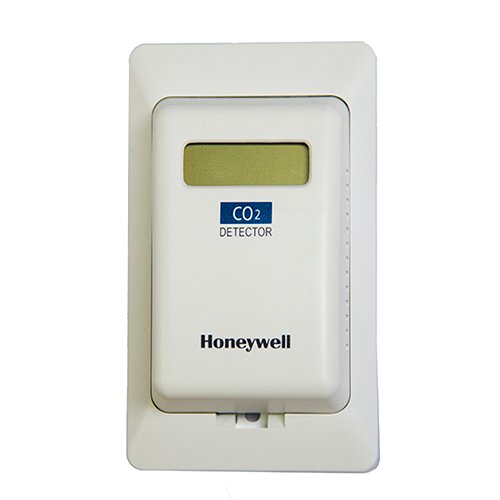

HONEYWELL DIGITAL CO2 SENSOR CDS2000A2000C
IAQ(Indoor Air Quality) sensor, which has been designed to detect carbon dioxide gas in the air. This model has resolution by NDIR method, so it is an optimum device for ventilation of buildings, houses, etc. Also, the advantage of this model is compact size and easy installation.
Description
FEATURES
– High sensitivity and good resolution
– High technology adopted by NDIR method
– No calibration needed in installation
– No maintenance needed in normal applications
– Two type signal(DCV and DCA) output
– Easy installation
– Compact size (70㎜×122㎜×32㎜)
Gas Detected : Carbon dioxide (CO2)Sensing Method : NDIR(Non-dispersive infrared)Detect Range : 0~2,000ppmAccuracy : ±30ppm ±5% of measured valueWarm-up Time : Within 2 minutesPower Supply : 24Vac, 24Vdc±20%, 50/60HzOutput Signal : 0~10Vdc or 0~20mAResponse Time : Within 150 sec (90%)Wiring : 4-wireOperating Temperature : 0 ~ 50℃Operating Humidity : 0 ~ 95%RH (non condensing)Storage Temperature : -20 ~ 60℃Storage Humidity : 0 ~ 95%RH (non condensing)
BRAND
Honeywell
MOC
PLASTIC
MODEL NUMBER
CDS2000A1000
OPERATION
ELECTRIC
