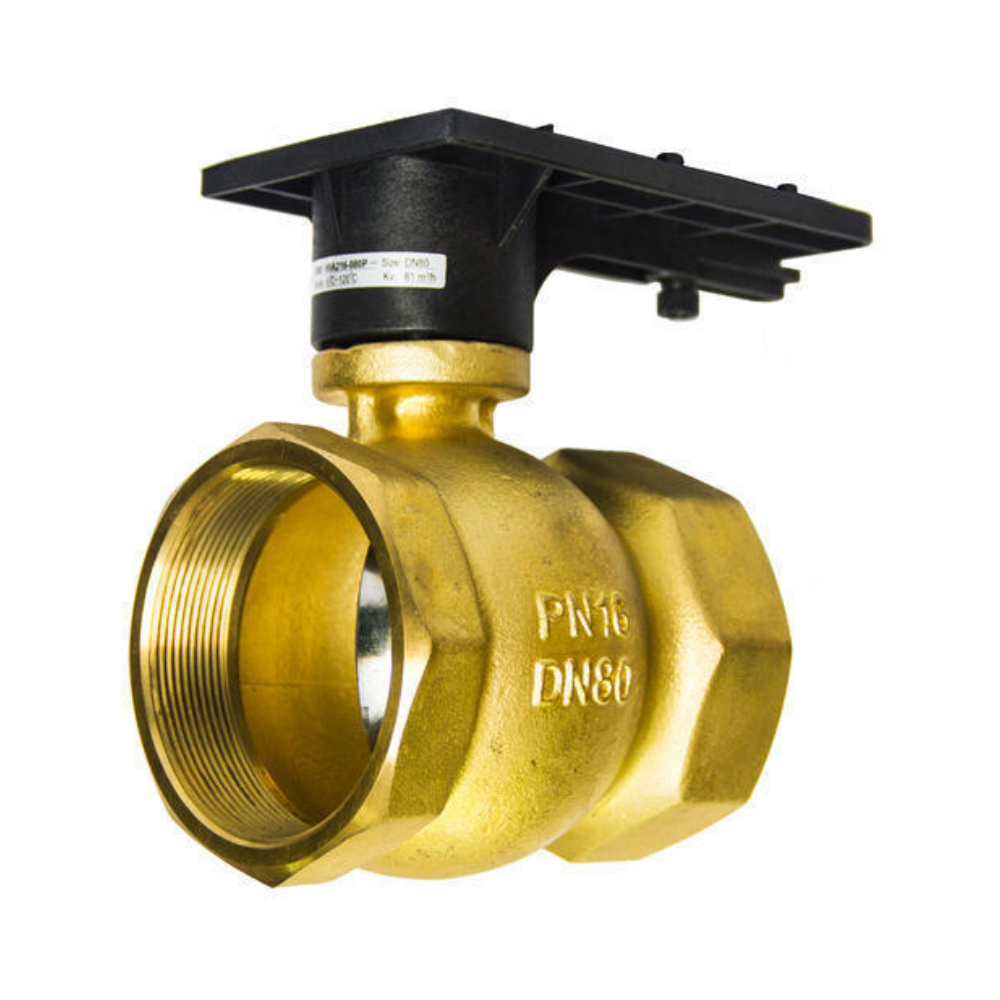

Honeywell 2 Way Control Valve Screwed VBA216
Honeywell 2 Way Control Valve Screwed VBA216 is a cast brass ball valve used for modulating control of hot/chilled water in heating, ventilating, and air conditioning (HVAC) systems. It features a low seat leakage rate, spring supply seat for long life span, excellent self-clean function, and accurate positioning. It is easy to mount and can be used with Honeywell CN7505A2001(5Nm), CN7510A2001(10Nm), CN7220A2007(20Nm) actuators.
Description
Features of Honeywell 2 Way Control Valve Screwed VBA216:
– Cast brass body with BSPP connections
– Low seat leakage rate
– Spring supply seat for long life span
– Excellent self-clean function
– Accurate positioning for state-of-the-art temperature control
– Easy mounting of directly coupled with electric actuator
Additional Information
Manufacturer
Honeywell
Model No
VBA216
Rated Rotary Angle
90° (adjustable)
Nominal Pressure Rating
PN16
Flow Characteristic
Equal percentage
Rangeability
300:1
End connections
BSPP
Seat
Reinforced PTFE
Ball
Stainless Steel
Stem
Stem
Medium
Chilled and hot water
Working temperature range
-5 to 120° C
