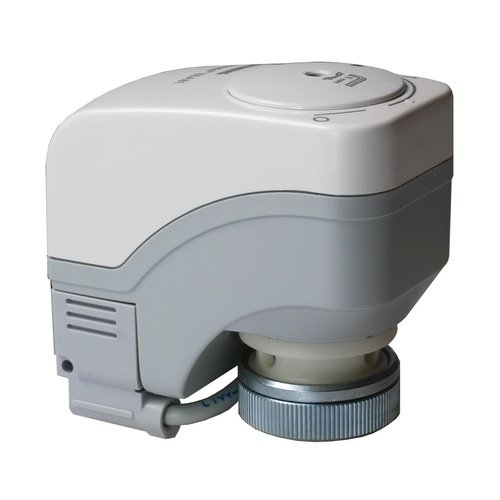

SIEMENS MODULATING ACTUATOR SSB.61
Electromotoric actuators for modulating or 3-position control of small valves for terminal units and chilled ceilings. With position indication, manual control and plug-in type connecting cable 1.5 m. Automatic stroke adaption and force-dependent switching off in the end position.
Description
Additional info
Operating voltage : AC 24 V, DC 24 V
Positioning force: 200 N
Stroke: 5.5 mm
Positioning signal: DC 0…10 V
Power consumption: 2.5 VA
Positioning time: 75 s
Cable length: 1.5 m
Degree of protection :IP40
Ambient temperature, operation: 1…50 °C
Medium temperature: 1…110 °C
Ambient humidity, operation: 5…85 % r.h.
Dimensions (W x H x D): 83 x 81.4 x 48 mm
Mounting position: Upright to 90° inclined
BRAND
SIEMENS
MOC
PLASTIC
MODEL NUMBER
SSB.61
