Description

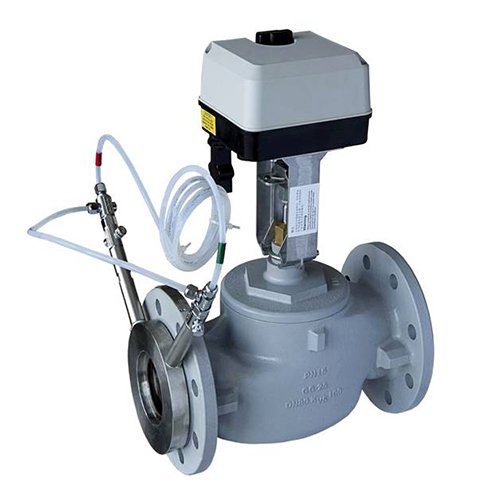

Easy installation• Extremely convenient for commissioning at site Components of ML-SBE Series Super Electric Actuator• Built-in common terminal equipment thermal output features database for high-precise linear temperature control of theterminal equipment• Built-in pressure-independent characteristics database ensures the pressure-independent temperature and flow control• All temperature and flow can be automatically regulated without any human interference• Size of control valve can be set directly• Stroke self-adaption function• Max. flow can be preset easily according to the requirements of the terminal equipment• Display of max. set flow• Extremely low energy consumption Control valve• V5328A Series control valve for DN65-DN80 and V5088A Series control valve for DN100-DN150• Balancing valve plug design ensures low energy consumption and long service life of the valve and the metallic sealingensures basically no leakage of the valve

BRAND
Honeywell
MOC
Brass
MODE OF CONNECTION
Flanged End
MODEL NUMBER
V5088A +ML7420A8088-SBE025
OPERATION
AUTOMATIC
