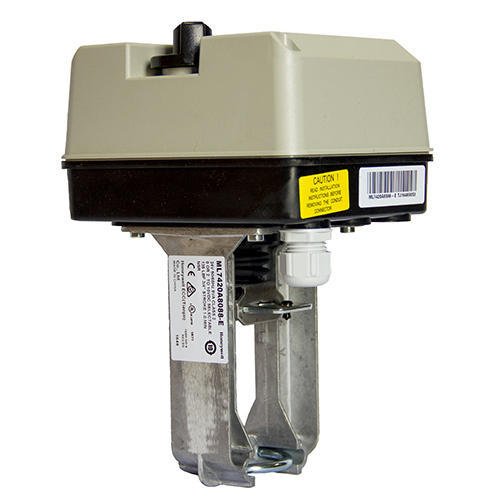

HONEYWELL MODULATING LINEAR ACTUATOR ML7420A8088-E
The ML7420A actuators are designed for modulating control with controllers providing an analog output of 2…10 Vdc. They operate Honeywell’s standard valves in heating, ventilation, and air conditioning (HVAC) applications.
Description
SPECIFICATIONSTemperature Limits
Ambient operating limits -10~+50 ℃ at 5~95% r.h.Ambient storage limits -40…+70 °C at 5…95% r.h.Medium temperature Max. 150 °C (220 °C withHigh-Temperature kit)
Signals
Signal input voltage y=0~10 Vdc or 2~10 VdcRi=100 KΩSignal source 1 KΩ max.Position feedback signal x=2~10Vdc(fully extended)Load 1 mA max.
Safety
Protection class III as per EN60730-1Protection standard IP54 as per EN60529Flame retardant housing V0 as per UL94 (with metal cable gland)
Material
Cover ABS-FRBase glass fiber reinforced plasticYoke aluminum diecast
BRAND
Honeywell
MOC
PLASTIC
MODEL NUMBER
ML7420A8088-E
OPERATION
ELECTRIC
