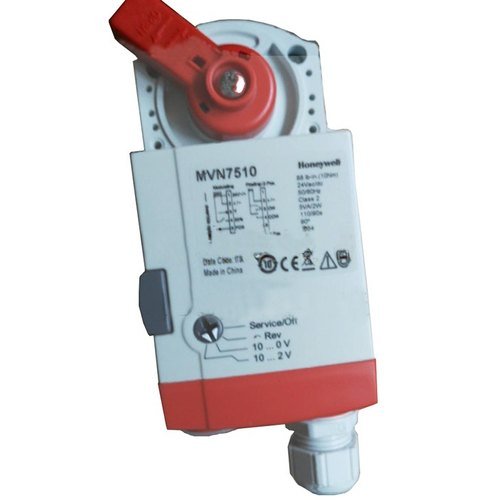

HONEYWELL MODULATING ACTUATOR MVN7510
MVN Control Valve Rotary Valve Actuators are used with the VBG2 2-way and the VBG3 3-way Control Ball Valves to control hot and chilled water with glycol solutions up to 50% in heating, ventilating, and air conditioning (HVAC) systems to provide two-position or modulating functions.
Description
SPECIFICATIONS
Actuator type Control ball valve rotary actuatorRotational stroke 90° ± 3°.Fail-safe mode Non-spring return, Fail in placeSupply voltage 230 Vac, 50 Hz +10%/-15%;24 Vac ±20%, 24 Vdc ±10%Environmental rating NEMA2Mounting Click-on installation – no tool requiredNoise rating at 1 m 35 dB(A) max. at 1 m.Materials Plenum-rated plastic housingOperating humidity range 5 … 95% RH, non-condensingAmbient temp. range -20 … +55 °CStorage temp. range -40 … +80 °CDimensions See Fig. 1 and Fig. 2Weight 0.3 kgElectrical connections Field wiring 20 to 18 AWG to screw terminals, located unde the removable access coverCable specification 0.8 to 1.0 mm2 (20 to 18 AWG),Plenum-rated, 300 V, 10 A, 1.5 m (4.5 ft.) length from end of access coverProtection rating IP40Approvals CE
BRAND
Honeywell
MOC
PLASTIC
MODEL NUMBER
MVN7510
OPERATION
ELECTRIC
