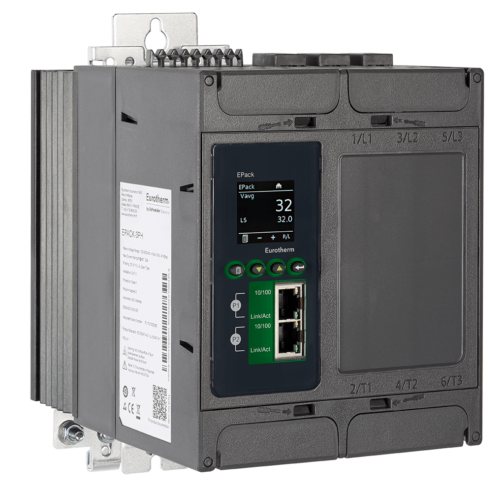

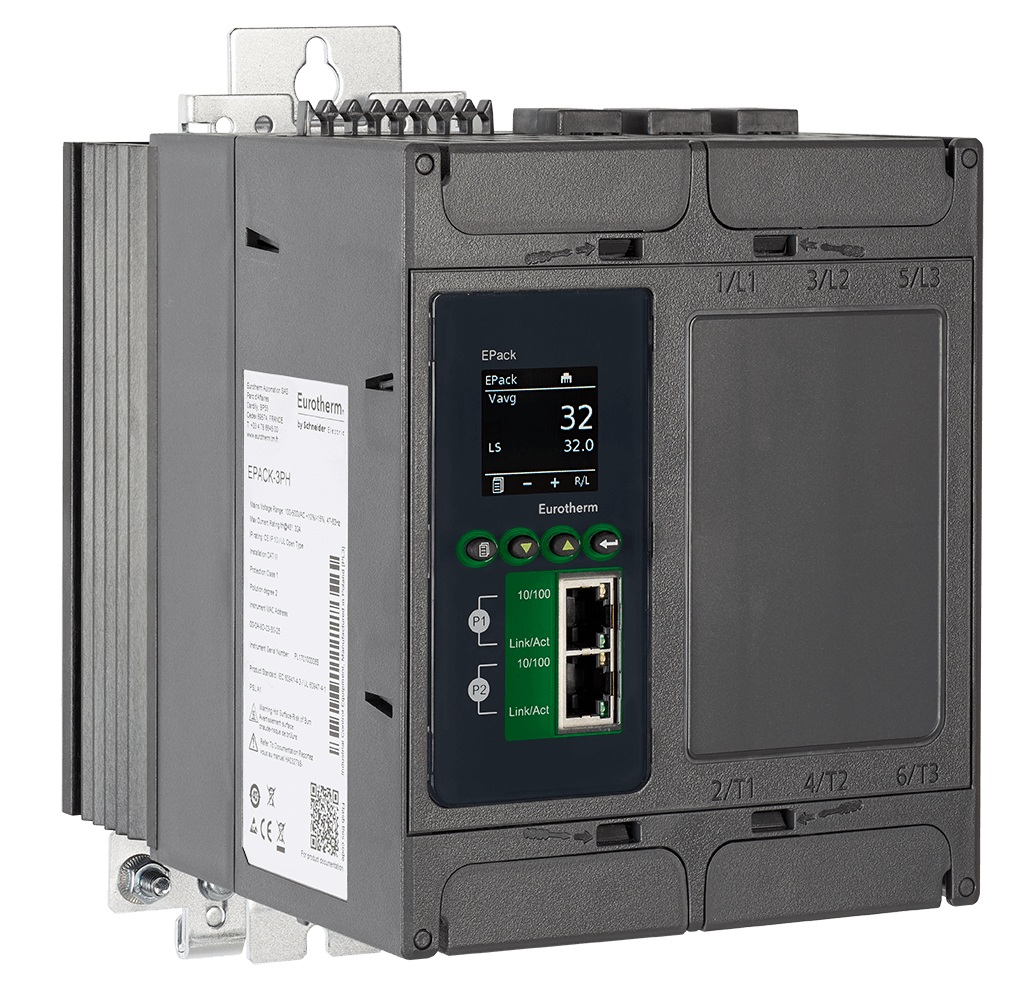

EPack Compact SCR Power Controller
EPack Compact SCR Power Controller
Whether replacing an existing product or designing a new process, the design of the EPack™ power controller has been carefully considered for fast and easy panel installation, commissioning and integration into wider systems, lowering equipment costs, and manufacturing times for you and your customers.
Description
Key Features:
– Nominal load current from 1 amp to 125 amps & Voltage up to 500V
– Compact DIN Rail and bulkhead mounting
– Configurable via front panel or Eurotherm software (iTools)
– Plug and play Ethernet communications with Zero configuration networking (zeroconf)
– V2 , I2 or True power control
– Controls comprehensive range of loads: resistive, infrared, transformer primary, silicon carbide
– Energy usage measurement
– Advanced load diagnostics
– Integrated dual port Ethernet switch for “daisy chained” communications
– Modbus® TCP or EtherNet IP protocols
Ideal for:
– Glass furnaces
– Melt heat treatment
– Food processing
– Multi-channel heaters
– High temperature furnaces
– Induction heating
– Plastics – Vacuum furnace
*A PC based backup and configuration software tool (the iTools Engineering Studio) uses an ethernet connection, for convenient desktop configuration.
